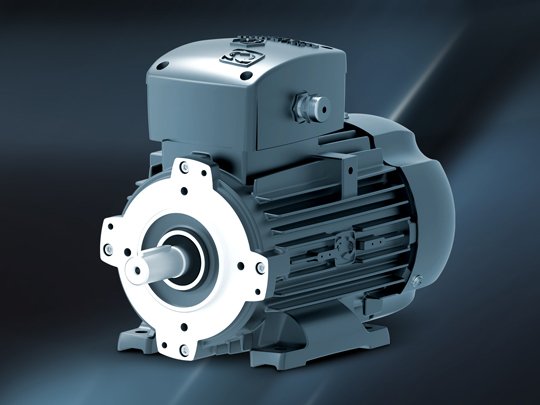

Flame Proof Motors
REVVO Exd Series Flameproof Motors – for Hazardous Environments The REVVO EXD series is engineered for use in potentially explosive atmospheres, delivering dependable performance where safety is critical.manufactured in accordance with IS/IEC 60079-1:2014, these motors are certified for operation in hazardous Zone 1 and Zone 2 locations as defined by IS:5572. The robust motor enclosure is specially designed to contain internal explosions and prevent transmission to the surrounding atmosphere, while withstanding sudden changes in pressure without damage.
Key Advantages
01)
High air gap flux density for superior performance
02)
Outstanding power-to-weight ratio ensuring compact yet powerful design
03)
Large torque-to-inertia ratio for rapid response and control
04)
Smooth torque delivery, even at low speeds
05)
Accurate torque control at zero speed for precision-driven applications
06)
Capability for high-speed operation with stable performance
07)
High overloading torque to handle demanding conditions
08)
Excellent efficiency and power factor for reduced energy consumption
Technical Details
- Rating & Frame Size: 0.37 kW – 18.5 kW / 2, 4, 6, 8 pole / 80 – 160L frame
- Voltage: 380 / 400 / 415 / 460
- Frequency: 50 / 60 Hz
- Insulation: Class F (Class H on request)
- Protection: IP55
