PMSM IE5 Motors

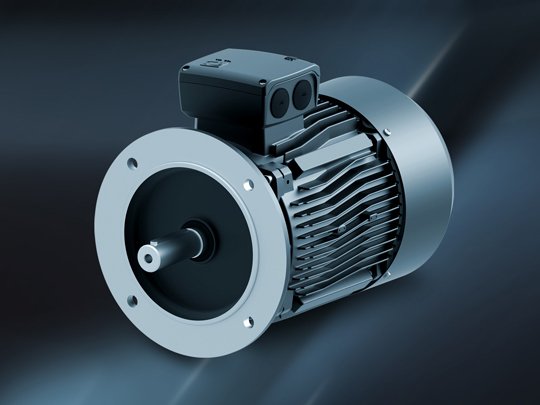

REVVO PM IE5 Series – for Ultra efficiency Achieve greater energy savings with the REVVO PM series Permanent Magnet Synchronous Motors (PMSM). Designed to meet IE5 efficiency standards, these motors deliver exceptional performance and reduced operating costs. Thanks to their flat efficiency curve, REVVO PM IE5 motors maintain peak efficiency even under real-world loads of 50–75%, where most motors typically operate. The result: significant energy savings and a faster return on investment, with payback periods that can be only a few months.
Key Advantages
01)
High air gap flux density for superior performance
02)
Outstanding power-to-weight ratio ensuring compact yet powerful design
03)
Large torque-to-inertia ratio for rapid response and control
04)
Smooth torque delivery, even at low speeds
05)
Accurate torque control at zero speed for precision-driven applications
06)
Capability for high-speed operation with stable performance
07)
High overloading torque to handle demanding conditions
08)
Excellent efficiency and power factor for reduced energy consumption
Technical Details
- Rating & Frame size: 0.55kW – 45 kW / 2,4, 6 pole / 80 – 225 frame
- Voltage: 380 / 400 / 415 / 460
- Frequency: 50 / 60 Hz
- Duty: S1
- Insulation: Class F (Class H on request)
- Protection: IP55 (IP56, IP66 on request)
