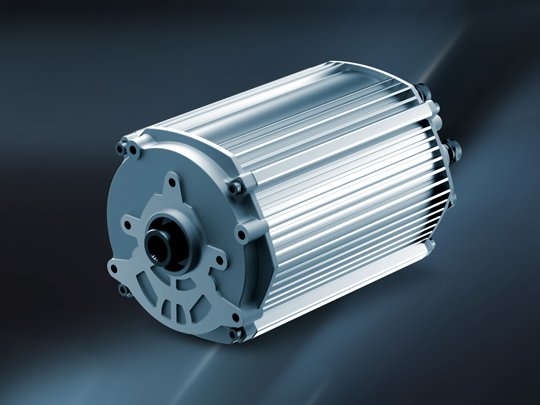

Powertrain E6 Series Motors

REVVO series Asynchronous three-phase motors are engineered for high efficiency (IE2) premium efficiency (IE3)and Ultra efficiency (IE4) performance. They are manufactured in strict dimensional compliance with IS:1231, IS:2223, and IEC72-1 standards.



Mounting configurations, as per IS:2253 and IEC34-7, include B3, B5, B14, and B35. All REVVO series motors are totally enclosed and fan-cooled (TEFC), ensuring durability and reliability. Non-standard versions are available in TENV construction, with special mounting options, shaft designs, and other customized features.

Key Advantages

01)

High air gap flux density for superior performance

02)

Outstanding power-to-weight ratio ensuring compact yet powerful design

03)

Large torque-to-inertia ratio for rapid response and control

04)

Smooth torque delivery, even at low speeds

05)

Accurate torque control at zero speed for precision-driven applications

06)

Capability for high-speed operation with stable performance

07)

High overloading torque to handle demanding conditions

08)

Excellent efficiency and power factor for reduced energy consumption

Powertrain E6 Series Motors Applications

Technical Details

  • Power (kW): 3, 4, 5, 6
  • Rated Voltage (VDC): 60
  • Rated Torque (Nm): 9.5, 12.7, 15.9, 19
  • Rated Current (Amps DC): 55, 74, 92, 111
